Overview
This tutorial runs the core coralseed workflow for a simulated reseeding event at Lizard Island:
- load reef and benthic habitat maps;
- convert habitat classes into a spatial seascape settlement-probability surface;
- seed particles from an external dispersal model;
- simulate settlement;
- estimate settlement density and settlement summaries;
- visualise the output.
Load example spatial data
The package includes Lizard Island example data in inst/extdata. These are accessed with system.file() so the tutorial works after installation.
lizard_benthic_map <- system.file(
"extdata", "Lizard_Benthic.geojson",
package = "coralseed"
) |>
sf::st_read(quiet = TRUE)
lizard_reef_map <- system.file(
"extdata", "Lizard_Geomorphic.geojson",
package = "coralseed"
) |>
sf::st_read(quiet = TRUE)
lizard_particles_sf <- system.file(
"extdata", "lizard_del_14_1512_sim1_10.json",
package = "coralseed"
) |>
sf::st_read(quiet = TRUE)Build the seascape probability surface
seascape_probability() combines reef geomorphology and benthic habitat maps and assigns settlement probabilities to habitat classes.
lizard_seascape <- seascape_probability(
reefoutline = lizard_reef_map,
habitat = lizard_benthic_map
)
lizard_seascapeSimple feature collection with 669 features and 3 fields
Geometry type: POLYGON
Dimension: XY
Bounding box: xmin: 1628792 ymin: 8347643 xmax: 1633662 ymax: 8354525
Projected CRS: AGD84 / AMG zone 53
# A tibble: 669 × 4
# Groups: class [7]
class geometry habitat_id settlement_probability
* <chr> <POLYGON [m]> <chr> <dbl>
1 Back Reef Slope ((1629141 8349637, 1629142… Back_Reef… 0.46
2 Back Reef Slope ((1629009 8350083, 1629009… Back_Reef… 0.54
3 Back Reef Slope ((1628986 8350109, 1628985… Back_Reef… 0.57
4 Back Reef Slope ((1628986 8350114, 1628986… Back_Reef… 0.45
5 Back Reef Slope ((1628996 8350109, 1628997… Back_Reef… 0.68
6 Back Reef Slope ((1628948 8350136, 1628938… Back_Reef… 0.45
7 Back Reef Slope ((1629017 8350158, 1629017… Back_Reef… 0.52
8 Back Reef Slope ((1628929 8350162, 1628929… Back_Reef… 0.76
9 Back Reef Slope ((1629009 8350189, 1629009… Back_Reef… 0.64
10 Back Reef Slope ((1629014 8350189, 1629014… Back_Reef… 0.47
# ℹ 659 more rowsSeed particles
seed_particles() takes particle positions from an external dispersal model and adds biological filters, including time limits, competency, mortality, and settlement probability.
lizard_particles <- seed_particles(
input = lizard_particles_sf,
zarr = FALSE,
set.centre = TRUE,
seascape = lizard_seascape,
probability = "additive",
limit.time = 12,

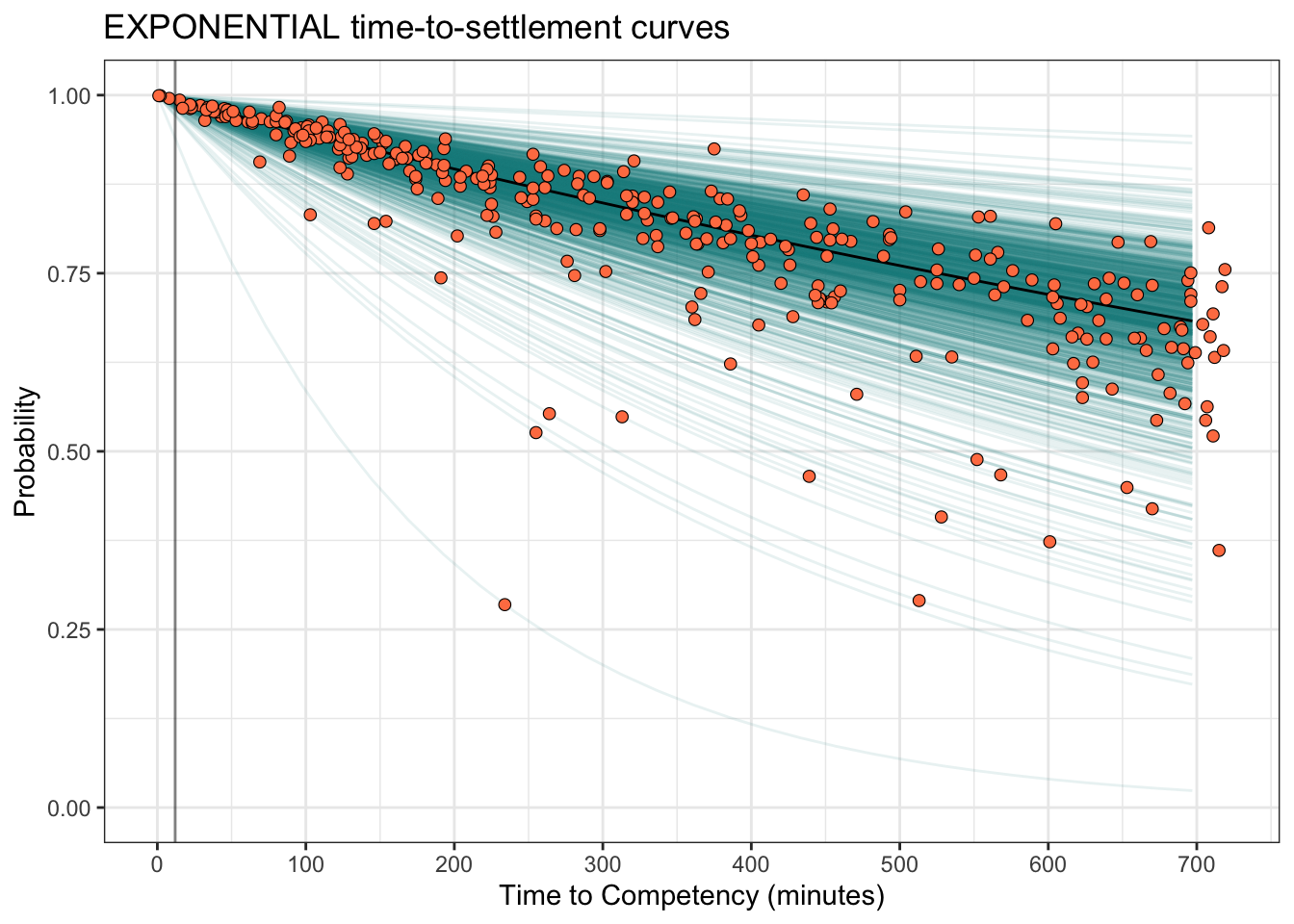

competency.function = "exponential",
crs = 20353,
simulate.mortality = "typeIII",
simulate.mortality.n = 0.1,
return.plot = TRUE,
return.summary = TRUE,
silent = FALSE
)Inspect the returned object.
names(lizard_particles)[1] "seed_particles" "multiplot" "summary"
lizard_particles$summary Metric Value
1 Number of particle tracks 1000
2 Seed setting [No seed set]
3 Start time 2022-12-16
4 End time 2022-12-16 12:57:00
5 Dispersal time (hrs) 12.95
6 Total mortality by tmax 70Settle particles
settle_particles() applies spatial settlement probability and returns the simulated settled subset.
lizard_settlers <- settle_particles(
lizard_particles,
probability = "additive",
return.plot = FALSE,
silent = TRUE
)
names(lizard_settlers)[1] "points" "paths" Plot settled particles

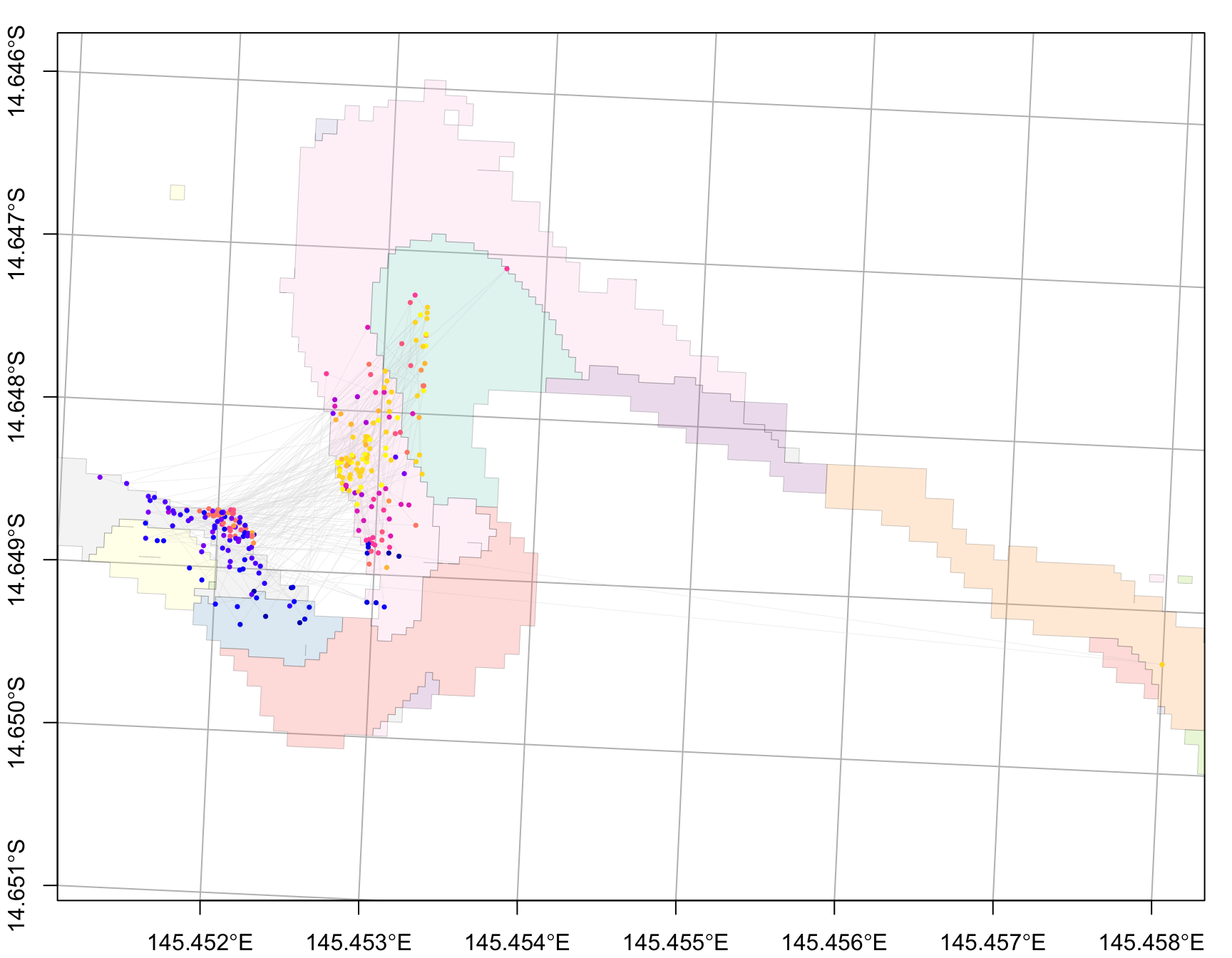

plot_particles(
lizard_settlers$points,
lizard_seascape
)
Estimate settlement density
settlement_density() converts settled particles into a spatial density surface.
lizard_settlement_density <- settlement_density(
lizard_settlers$points
)
lizard_settlement_density$count
Simple feature collection with 518 features and 1 field
Geometry type: POLYGON
Dimension: XY
Bounding box: xmin: 1630920 ymin: 8354121 xmax: 1631660 ymax: 8354401
Projected CRS: AGD84 / AMG zone 53
First 10 features:
x count
1 POLYGON ((1630920 8354121, ... NA
2 POLYGON ((1630940 8354121, ... NA
3 POLYGON ((1630960 8354121, ... NA
4 POLYGON ((1630980 8354121, ... NA
5 POLYGON ((1631000 8354121, ... NA
6 POLYGON ((1631020 8354121, ... NA
7 POLYGON ((1631040 8354121, ... NA
8 POLYGON ((1631060 8354121, ... NA
9 POLYGON ((1631080 8354121, ... NA
10 POLYGON ((1631100 8354121, ... NA
$density
Simple feature collection with 518 features and 2 fields
Geometry type: POLYGON
Dimension: XY
Bounding box: xmin: 1630920 ymin: 8354121 xmax: 1631660 ymax: 8354401
Projected CRS: AGD84 / AMG zone 53
First 10 features:
x count density
1 POLYGON ((1630920 8354121, ... NA NA
2 POLYGON ((1630940 8354121, ... NA NA
3 POLYGON ((1630960 8354121, ... NA NA
4 POLYGON ((1630980 8354121, ... NA NA
5 POLYGON ((1631000 8354121, ... NA NA
6 POLYGON ((1631020 8354121, ... NA NA
7 POLYGON ((1631040 8354121, ... NA NA
8 POLYGON ((1631060 8354121, ... NA NA
9 POLYGON ((1631080 8354121, ... NA NA
10 POLYGON ((1631100 8354121, ... NA NA
$area
Simple feature collection with 1 feature and 1 field
Geometry type: POLYGON
Dimension: XY
Bounding box: xmin: 1630920 ymin: 8354121 xmax: 1631653 ymax: 8354394
Projected CRS: AGD84 / AMG zone 53
polygons area
1 POLYGON ((1630952 8354208, ... 61063 [m^2]Summarise settlement
settlement_summary() gives spatially explicit summary metrics, usually binned to a selected cell size.
lizard_settlement_summary <- settlement_summary(
lizard_particles,
lizard_settlers,
cellsize = 50
)
lizard_settlement_summary Description Value
1 1) Settlement success: -
2 How many larvae settled? 272
3 What percent of released larvae settled? 27.2
4 2) Time to settlement -
5 What was the average time to settlement? 12
6 What was the min/max time to settlement? 12
7 3) Larval distance -
8 How far on average did larvae travel before settling? 313
9 What is the max of dispersal distances? 1200.2
10 4) Dispersal footprint -
11 What is the total spatial footprint of the restoration? 64380.1488469933
12 How many gridcells were seeded within the area? 58
13 What is the median count per gridcell? 3
14 What is the max counts per gridcell? 24
15 What is the median density? 0.0075
16 5) Spatial pattern -
17 How far apart are the settlers? 5.95970772801065
18 How clustered are the settlers? 0.27
Units
1 -
2 Total number of larvae settled
3 Percent settlement success
4 -
5 Median settlement (hrs)
6 Min/max settlement (hrs)
7 -
8 Distance (meters)
9 Distance (meters)
10 -
11 Meters ^2
12 n grids (50*50,m)
13 count (50*50,m)
14 count (50*50,m)
15 density (50*50,m)
16 -
17 Nearest-neighbour distance (metres)
18 Clark-Evans indexInteractive map
Interactive leaflet widgets can be heavy in pkgdown builds. For stable documentation, the live map_coralseed() call is shown but not evaluated by default.
map_coralseed(
seed_particles_input = lizard_particles,
settle_particles_input = lizard_settlers,
settlement_density_input = lizard_settlement_density,
seascape_probability = lizard_seascape,
restoration.plot = c(100, 100),
show.footprint = TRUE,
show.tracks = TRUE,
subsample = 1000,
webGL = TRUE
)To save a stable HTML widget for pkgdown:
lizard_map <- map_coralseed(
seed_particles_input = lizard_particles,
settle_particles_input = lizard_settlers,
settlement_density_input = lizard_settlement_density,
seascape_probability = lizard_seascape,
restoration.plot = c(100, 100),
show.footprint = TRUE,
show.tracks = TRUE,
subsample = 1000,
webGL = TRUE
)
fs::dir_create("vignettes/www")
htmlwidgets::saveWidget(
lizard_map,
"vignettes/www/lizard_map.html",
selfcontained = TRUE
)Then embed it manually:
Model flowchart
flowchart_coralseed(
lizard_particles,
lizard_settlers,
multiplier = 1000,
postsettlement = 0.8
)[Total particles 1,000,000 | n tracks 1,000 | Larvae per track = 1,000 | Maximum dispersal time = 720 minutes]
Key outputs
list(
seascape = lizard_seascape,
seeded_particles = lizard_particles,
settlers = lizard_settlers,
settlement_density = lizard_settlement_density,
settlement_summary = lizard_settlement_summary
